Description

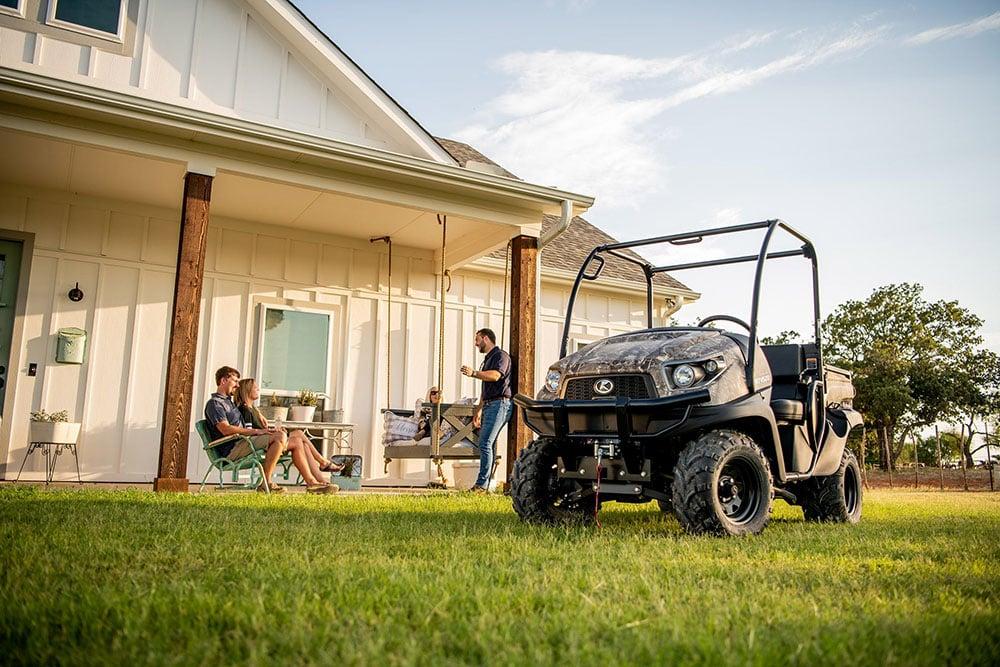

The new RTV-X sets out to revitalize the utility vehicle market. An upgrade to Kubota’s existing X-Series – the #1 selling pure utility vehicle in North America since 2003*. The design set out to refine the customer driving experience and elevate the existing platform with key upgrades and new features. Most notably, the RTV-X comes standard with LED low beam headlights, while select trims also include high beam and feature the innovative Kubota ProKonvert Cargo Bed.

Features

24.8 HP Kubota Diesel Engine: Power when and where you need it. Even after the sun disappears, you can rely on the powerful 24.8 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.
VHT-X (Variable Hydraulic Transmission): Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.
20% Larger, Clog-Resistant Radiator: Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.
Capacity: 1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back; Standard hydraulic dump bed with a whopping 19.1 cu. ft./9.9 cu. ft. (two-seat and four-seat configurations, respectively) capacity cargo bed; Optional factory spray-on bed liner to protect the cargo bed
Front & Rear Independent Suspension: Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.
10.8″ Inch Ground Clearance: The new X1140 raises the bar on ground clearance – to a full 10.8″ with 8″ of suspension travel – letting you glide over the bumps rather than through them.
Limited-Slip Front Differential: True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.
Dynamic Braking: You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.
More Comfort: Ergonomically designed 60:40 split-bench seats (with adjustable driver’s side on Worksite models); Comfortable rear seat – more legroom for the backseat passengers means more comfort and less fatigue; Hydraulic power steering eliminates steering wheel kickback increasing operator comfort; Tilt-adjustable steering wheel; Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm; Easily accessible dash-mounted parking brake; Glove box and under-seat storage compartments; Enhanced ROPS for your safety (meets the SAE J2194 and OSHA 1928 ROPS standards)
Alloy Wheels (Optional): You’ll travel in style with these attractive, machine-polished alloy wheels. Clear coating helps keep them bright and shiny.

Engine

Grade: Premium
Color: Orange, Camo, Desert Sand
Make and model: KUBOTA D1105- E4-UV
Type: 3-cylinders, 4-cycle, diesel, OHV
Displacement: 68.5 cu. in.(1,123 cc)
Horsepower: 24.8 HP (18.5 kW) @ 3000
Cooling system: Liquid
Battery: 670 CCA

Transmission

Transmission: Variable hydro transmission (VHT-X)
Gear selection: Hi-Lo range forward, neutral, reverse
Max. Traveling speed: 0-25 mph (0-40 km/h)
Front differential lock: Limited-slip differential
Rear differential lock: Foot operated differential lock
Steering: Ludractatin namior eteorina

Suspension, Steering and Brakes

Front Brakes: Wet Disc Brakes
Rear Brakes: Wet Disc Brakes
Parking Brake: Rear wheel, hand operated
Front Suspension: Independent, Dual A-arms with adjustable spring preload
Rear Suspension: Independent with coil over shock
Front Ground clearance: 10.5 in. (266 mm)
Rear Ground clearance: 10.4 in. (263 mm)

Dimensions and Capacities

Length: 122.9 in. (3121 mm)
Width: 122.4 in. (3,110 mm)
Height, overall: 63.2 in. (1,605 mm)
Front tread centers: 79.5 in. (2,020 mm)
Rear tread centers: 48.8 in. (1,240 mm)
Wheelbase: 48.8 in. (1,240 mm)
Turning radius: 80.5 ft. (2,045 m)
Weight: 2,099 lb. (952 kg)
Towing capacity: 1,300 lb. (590 kg)
Pavload capacity: 1,472 lb. (668 kg)

Cargo Bed

Material: Steel
Width × Length × Depth: 57.7 in. (1,465 mm) × 40.5 in. (1,030 mm) × 11.2 in. (285 mm)
Volume: 15.2 cu. ft. (0.43 m3)
Bed height (unloaded): 34.9 in. (887 mm)
Capacity: 1,102 lb. (500 kg)
Hydraulic bed lift: Standard
Spray-on bed liner: Standard
3-way open: Standard

Tires

ATV (All Terrain): 25 × 10-12, 6-ply
HDMP (Heavy Duty Multi-Purpose): 25 × 10-12, 6-ply

Other Specifications

Headlights: LED (High/Low)
Tubular overhead structure: 2.0 in. (50.8 mm) steel tube
Seat belts: 2-point
Certification: SAE J2194 and OSHA 1928 ROPS
Fuel tank capacity: 7.9 gal. (30 L)
Sound rating at operator’s ear at max rpm: 84 db.
Alloy wheel: (Orange, Camo) Available; (Desert Sand) Standard
Standard front guard: Premium

NOTES:

The equipment shown is for illustrative purposes only and may not be base equipment.

KUBOTA RTV520R-A(CAMO)

PAPPY'S PRICE

$11,299.00

42140

A5KA1DGAPRG025048
