Description

The LX Series boasts multiple horsepower options to meet a variety of needs. Available in a 4WD in both a ROPS and cab with an HST Transmission – with choices between 24.8 to 39.8 gross engine horsepower. For a more affordable option, the LX Series also offers the Special Utility (SU) models packed with both value and deluxe quality features. The LX models are the answer to comfort, ease of operation, and workability.

Features

Year Round Comfort: Factory Cab & ROPS Version – Available with either the economical ROPS or the comfort of a climate controlled cab that comes standard with A/C and heat. Wide and Flat Operator’s Station – Easy to get on and off with plenty of leg room to increase operator comfort. LED Front Work Lights – Standard front LED work lights on cab models allow for better visibility. Modern Dash Panel – Easy-to-read with all the information displayed right in front of the operator.
Ease of Use: Easy-to-Use Controls – Simple controls that are easy to understand and operate, even for first time users. 3-Range Hydrostat (HST) Transmission – With an easy-to-use HST paired up with a Kubota 3-range transmission, you’re sure to find the right balance of speed and torque to get your job done quickly and efficiently. Kubota Treadle Pedal Design – Effortlessly change speed and direction using Kubota’s forward and reverse treadle pedals. Cruise Control – Allows the operator to maintain a constant speed without keeping their foot on the HST pedal. Hydraulic Independent PTO – Easy-to-use, no clutching or stopping.
Designed to Perform, Built to Last: Kubota Diesel Engine – Kubota is the #1 manufacturer of under 100 HP non-automotive, multi-cylinder diesel engines in the World. Kubota Performance Matched – The LX Series is built by Kubota for Kubota, it’s not a rebranded product built and distributed by multiple manufacturers. Metal Hood and Fenders – Strong and durable metal hood and fenders will not only protect your equipment, but keep it looking good for a long time to come. Kubota HST with 3-Range Transmission – Smooth and dependable HST Transmission with an easy-to-use range selection to optimize power output to meet your needs.
Performance Matched Front End Loader: Kubota Built Front Loader – Kubota’s front loaders are built by Kubota and specifically designed to maximize the performance of the front loader and tractor. Optional 3rd Function Valve – For attachments that require hydraulic power such as grapples. Easy-to-Remove – The Kubota LA535 Front Loader is designed to be easy-to-remove and reinstall, without tools, whenever the job demands it. Ease-of-Use – With plenty of lift capacity, simultaneous lift and curl functions, and standard 2-lever quick coupler, the Kubota LA535 Front Loader makes it easy to complete your task with speed and ease. Swift-Tach Capability (Optional) – Remove your front loader without having to leave the operator platform with the optional swift-tach kit. Additionally, this kit includes the flat-faced, no spill 1-Lever Quick Coupler which enables removal of all 4 hydraulic hoses simultaneously, without the hassle of hydraulic oil spillage. Mechanical Self-Leveling (Optional) – The all new Mechanical Self-Leveling option automatically maintains the angle of the loader’s attachment, which provides better loader lever control and is perfect for pallet fork applications.
Performance Matched Backhoe: Kubota Built Backhoe – Kubota’s backhoes are built by Kubota and specifically designed to maximize the performance of the backhoe and tractor. Easy-to-Remove – The Kubota BH77 is easily removed without the use of tools. Reversible Seat – Increases operator comfort by using the existing full size operator’s seat. Optional Mechanical Thumb – Adding a thumb increases versatility and makes lifting objects even easier. Ease-of-Use – Designed with plenty of dig depth and reach, smooth hydraulics, cushioning valves to prevent shock when the dipper reaches the end of the cylinder stroke and ample room for the operator, you will find the BH77 is not only easy-to-use, but a pleasure to work with.
Performance Matched Mid Mount Mowers: Kubota offers a 60″ and 72″ mid-mount mower deck option, allowing you to choose which deck fits your needs best. These decks are built by Kubota and are designed to be easily mounted and dismounted. Kubota also offers a mulch kit and rear bagger option for the 60″ mid-mount mower deck.
Performance Matched 4-Point Quick Connect Front Hitch: Do you need to clear snow, sweep your driveway, or dethatch your lawn? The Kubota 4-point front hitch enables front implements like blades, brooms and snow blowers to be easily attached and removed, making the Kubota LX Series even more versatile!
The Affordable Choice: Special Utility Models: The SU models are the perfect value option if you just need a compact tractor for applications such as land maintenance, dirt work, and material handling. The SU models not only provides the same power, ease of use, and quality as the rest of the LX Series lineup, but also offers an alternative choice if applications requiring mid-PTO such as mid mount mowers and front snow implements are not needed.
Meet The New Lx Series: #1 rated tractor brand for durability and owner experience in the U.S.

Engine

Type: E-TVCS, liquid cooled, 4- cylinder diesel
Make, Model: V1505-CR-TE5-D36Q1
PTO horsepower: 27 HP (20.1 kW)
Engine gross horsepower*: 30.8 HP (23 kW)
Rated RPM: 2500 RPM
Bore and stroke: 03.1 × 3.1 in. (0 78 × 78.4 mm)
Displacement: 91.5 cu. In. (1498 cc)
Air cleaner: 6 in. Dual paper element
Lubrication: Forced lubrication
Cooling system: Pressurized radiator
Radiator fan: Radial air flow

Capacities

Fuel tank: 8.3 gal. (31.5 L)
Cooling system: 4.5 qts. (4.3 L)
Engine oil: 5.1 qts. (4.8 L)
Transmission case: 4.0 gal. (15 L)

Drive Train

Transmission: HST (3 ranges)
Differential lock: Standard
Final drive: Spur gear
Brake: Multi-plate wet disc

PTO

Type: Independent
Rear: 540 RPM
Mid: 2500

Hydraulics

Type: Open center
Pump: Dual pump
Total pump output: 8.7 gpm (33.1 L/min)
Hydraulic outlet: Rear outlet
3-point hitch: Category I
Hydraulic control system: Position control valve
Lift capacity at lift point: 2139 lb. (970 kg)
Lift capacity 24 in. behind: 1676 lb. (760 kg)
Steering: Hydraulic power steering

Standard Tire Size

Front R1: 7-12
Front R4: 23×8.50-14 / 25×8.50-14
Front R14: 23×8.50-12 / 25×8.50-14
Rear R1: 12.4 -16
Rear R4: 12.4 -16
Rear R14: 14 -17.5

Traveling Speeds

Forward (R1): 0-13.6 mph (0-21.9 km/h)
Reverse (R1): 0-10.3 mph (0-16.5 km/h)

Dimensions (w/R1 tires)

Overall length (w/o 3P): 103.9 in. (2640 mm)
Overall width (min. tread): 53.7 in. (1365 mm)
Overall height: 84.6 in. (2150 mm)
Wheelbase: 65.6 in. (1666 mm)
Ground clearance: 14.6 in. (370 mm)
Turning radius with brake: 6.9 ft. (2.1 m)
Weight: 2469 lb. (1120 kg)

Other Features

ROPS (SU) models: Lower link stabilizer, Drawbar, Tool box, 12V power socket
ROPS models: Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm rest, Parallel link with damper seat suspension, Lower link stabilizer, Drawbar, Tool box, 12V power socket
CAB models: 4-pillar integrated cabin, Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm rest, Parallel link seat suspension, Telescopic lower links, Lower link stabilizer, Drawbar, Front LED work light, Tool box, Cabin Interior Light, Speakers, 12V power socket, Front & Rear wiper with washer, Rear defogger, Rear hatch half lock

NOTES:

Kubota Tractor Corporation reserves the right to change the stated specifications without notice. Power (HP/KW) and other specifications are based on various standards or recommended practices. For your safety, Kubota strongly recommends the use of a Rollover Protective Structure (ROPS) and seat belt in almost all applications.

KUBOTA RTVXG850GLAS-A

PAPPY'S PRICE

$21,997.00

42146

A5KH1RGNTRG059052

Similar Products

KUBOTA Z232KW-42

KUBOTA Z242KH-48

KUBOTA M4-071HDC12

KUBOTA L3902HST

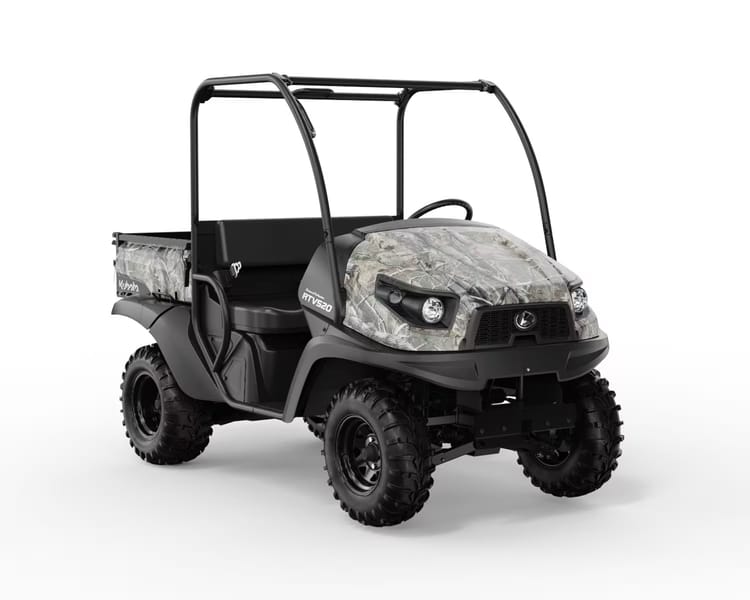

KUBOTA RTV520R-A CAMO
